Delikon PG and Metric Thread Liquid Tight Connectors, PG and Metric Conduit Fittings
Delikon PG and Metric Thread Liquid Tight Connectors provide a reliable connection for liquid tight flexible metal conduit and PVC coated flexible metal conduit. The compact design results in a connector that could be installed in a tight space. Delikon liquid tight connectors are often found on power plant, sensor, railway station, automation equipment, PLC and various other equipment, enclosures, junction boxes. Delikon PG and Metric Thread Conduit Connector could be produced in a variety of materials and finishes for great looks and lasting durability.
Delikon PG and Metric Thread Liquid Tight Connectors provide a reliable connection for liquid tight flexible metal conduit and PVC coated flexible metal conduit. The compact design results in a connector that could be installed in a tight space. Delikon liquid tight connectors are often found on power plant, sensor, railway station, automation equipment, PLC and various other equipment, enclosures, junction boxes. Delikon PG and Metric Thread Conduit Connector could be produced in a variety of materials and finishes for great looks and lasting durability.
delikon.com



Liquid Tight Metal Connector With PG or Metric Threads Connects flexible conduits to electrical boxes
For use with both Metallic Liquid tight Conduit, PVC Coated Flexible Metal Conduit, or specially produced for use with Non-metallic Liquid tight Type B
Material: Zinc Die Cast, Zinc or Chrome Plated. Liquid Tight Conduit Fittings For machinery wiring
* Available in 3/8 inch to 6 inches trade sizes, or other custom made sizes *Resistant to outdoor weather conditions *Liquidtight/Raintight/OilTight, Suitable for wet locations *Straight & Elbow

PG Threads Metal Liquid Tight Conduit Fittings (0 degree)

PG Threads
Metal Liquid Tight Conduit Fittings
(0 degree)

Model No.

For Conduit

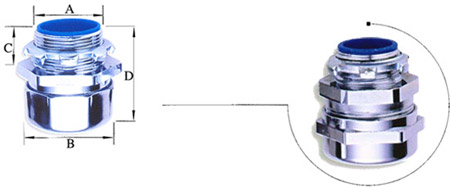

Straight LT Connector Dimension (mm)

PG
Thread

I.D.

A

B

C

D

YZB-0309

3/8

10.0

15.2

30.0

9.0

36.5

PG9

YZB-0311

3/8

10.7 18.6 30.0 6.5 36.5 PG11

YZB-0313

3/8

10.7 20.4 30.0 6.5 36.5 PG13.5

YZB-0316

3/8

10.7 22.5 30.0 6.5 36.5 PG16

YZB-0411

1/2

14.5 18.6 35.5 9.0 38.0 PG11

YZB-0413

1/2

14.5 20.4 35.5 9.0 38.0 PG13.5

YZB-0416

1/2

14.5 22.5 35.5 9.0 38.0 PG16

YZB-0421

1/2

14.5 28.3 35.5 9.0 38.0 PG21

YZB-0621

3/4

19.3 28.3 43.0 9.0 38.0 PG21

YZB-1029

1

24.4 37.0 48.0 11.0 50.0 PG29

YZB-1236

1-1/4

33.4 47.0 58.0 11.0 52.0 PG36

YZB-1442

1-1/2 38.0 54.0

64.2

15.0

60.0

PG42

YZB-2048

2

48.8

59.0

86.6

20.0

80.5

PG48

Metric Threads Metal Liquid Tight Conduit Fittings  (0 degree)

Metric Threads
Metal Liquid Tight Conduit Fittings  (0 degree)

Model No.

For Conduit

Straight LT Connector Dimension (mm)

METRIC
Thread

I.D.

A

B

C

D

YZB-03M16

3/8

10.7 16 30 12 39.5

M16

YZB-03M20

3/8

10.7 20 30 13 40.5

M20

YZB-04M20

1/2

14.5 20 35.5 13 42.0

M20

YZB-04M25

1/2

14.5 25 35.5 13 42.0

M25

YZB-06M25

3/4

19.3 25 40 13 42.0

M25

YZB-06M32

3/4

19.3 32 40 15 44.0

M32

YZB-10M32

1

24.4 32 46.5 15 54.0

M32

YZB-10M40

1

24.4 40 46.5 15 54.0

M40

YZB-12M40

1-1/4 33.4 40 58.0 15 56.0 M40

YZB-14M50

1-1/2 38.0 50

64.2

19 64.0 M50

YZB-20M63

2

48.8

63

86.6

25 85.0 M63
YZB-24M75

2-1/2

59.4

75

103.0

22.0 62.0

M75

YZB-30M90

3

75.8

90

120.0

22.0 65.0

M90

YZB-40M115

4

97.6

115

157.0

24.0 72.0

M115

YZB-50M140 5" 123.0 140 175.0 30.0 75.0

M140

YZB-60M165 6" 137.0 165 200.0 30.0 80.0

M165

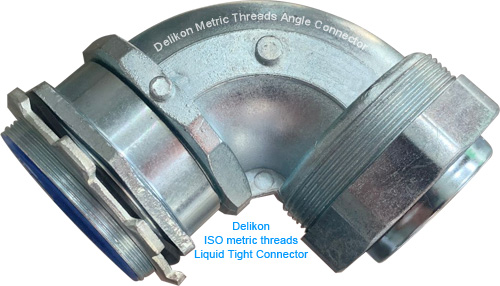

PG Threads Metal Liquid Tight Conduit Fittings (90 degrees)

PG Threads
Metal Liquid Tight Conduit Fittings
(90 degrees)

Model No.

For Conduit

90 Degrees LT Connector Dimension (mm)

PG
Thread

I.D.

A

B

C

D

YZL-0309 3/8

10.7

15.2

30.0

8.5

54.0

PG9

YZL-0311 3/8

10.7

18.6

30.0

8.5

54.0

PG11

YZL-0313

3/8

10.7

20.4

30.0

8.5

54.0

PG13.5

YZL-0413

1/2

14.5 20.4 35.5 8.5 57.0 PG13.5

YZL-0416

1/2

14.5 22.5 35.5 12.5 57.0 PG16

YZL-0421

1/2

14.5 28.3 35.5 12.5

57.0

PG21

YZL-0621

3/4

19.3 28.3 43.0 14.0

67.0

PG21

YZL-1029

1

24.4 37.0 48.0 17.5

73.0

PG29

YZL-1236

1-1/4

33.4 47.0 58.0 18.0

93.5

PG36

YZL-1442

1-1/2 38.0 54.0

64.2

21.5

103.0

PG42

YZL-2048

2

48.8

59.0

86.6

24.0

126.0

PG48

Metric Threads Metal Liquid Tight Conduit Fittings (90 degrees)

Metric Threads
Metal Liquid Tight Conduit Fittings (90 degrees)



Model No.

For Conduit

90 Degrees LT Connector Dimension (mm)

METRIC
Thread

I.D.

A

B

C

D

YZL-03M16

3/8

10.7

16

30

13

54.0

M16

YZL-03M20

3/8

10.7

20

30

13

54.0

M20

YZL-04M20

1/2

14.7

20

35.5

13

57.0

M20

YZL-06M25

3/4

19.3

25

40

13

67.0

M25

YZL-10M32

1

24.4

32

46.5

15

73.0

M32

YZL-10M40

1

24.4 40 46.5 15

73.0

M40

YZL-12M40

1-1/4 33.4 40 58.0 15

93.5

M40

YZL-14M50

1-1/2 38.0 50

64.2

19

103.0

M50

YZL-20M63

2

48.8

63

86.6

25

126.0

M63
  • Related Products:
    Liquid tight connectors with G thread >>>
      straight (metallic)

  • Suitable For Use With:
    Liquid Tight Metal Conduit

    Liquid-tight conduit is ideal when used with liquid-tight fittings for applications where a high degree of liquid tightness is required.

Heavy Series Conduit Fittings for heavy flexible sheath,heavy series over braided flexible conduit,EMI Shielding Termination Connector
Heavy Series Fittings

Download the catalog page for DELIKON PG Thread and Metric Thread Liquid Tight Conduit Connector in PDF File format.Delikon PG and Metric Thread Liquid Tight Connectors
Download the catalog page for DELIKON PG Thread and Metric Thread Liquid Tight Conduit Connector in PDF File format.
Heavy series flexible cable sheath water proof over braided flexible steel conduit offers optimum cable protection. Heavy series flexible cable sheath water proof over braided flexible steel conduit offers optimum cable protection in industry applications for protection against HOT metal sparks, slag, etc..Automation Wiring BRAIDED FLEXIBLE LIQUID TIGHT CONDUIT for cable management and protection of critical wiring in Mining, Oil and Gas, Ship Building, Beverage and Machine Tools Industry
