Fully InterLok Style (FI)
 |
 InterLok
metal strip and the
edges of the strip are completely
interlocked with each other. This
offers increased crush protection, and
higher axial strength. |
|
 |
 |
 |
 |
Trade
Size |
Inside Diameter |
Outside Diameter
(approx.) |
Part
Number |
|
5/32”
4mm |
0.174”
4.4mm |
7.4mm |
AT-FI-0025-BRAIDED |
|
3/16”
5mm |
0.188”
4.8mm |
7.8mm |
AT-FI-003-BRAIDED |
|
7/32”
5.5mm |
0.218”
5.5mm |
8.7mm |
AT-FI-0035-BRAIDED |
|
1/4”
6mm |
0.250”
6.4mm |
9.4mm |
AT-FI-004-BRAIDED |
|
9/32”
7mm |
0.282”
7.2mm |
10.8mm |
AT-FI-0045-BRAIDED |
|
5/16”
8mm |
0.313”
8.0mm |
12.2mm |
AT-FI-005-BRAIDED |
|
3/8”
9.5mm |
0.375”
9.5mm |
14.0mm |
AT-FI-006-BRAIDED |
|
1/2”
12.7mm |
0.500”
12.7mm |
17.3mm |
AT-FI-008-BRAIDED |
|
Delikon
High Temperature EMI RFI Shielding Small Bore Heavy
Series Over Braided Flexible Stainless Steel Conduit and Heavy
Series Stainless Steel Connector protect sensor cables and
wirings in Oil and Gas industry, chemical plant, and steel
industry
 The steel industry, oil and gas industry is highly reliant on
sensors, with constant monitoring and measuring taking place to
avoid unscheduled disruptions and machine maintenance. And the
functionality of sensors highly depends on the cables.
Delikon provides a complete range of high performance
High
Temperature
EMI RFI Shielding Small Bore Heavy Series Over
Braided Flexible Stainless Steel Conduit and Heavy Series
Stainless Steel Connector for mechanical protection as well as emi rfi shielding of sensor cables and wirings for continuous
casters, hot rolling mills, processing line, chemical plant and
oil and gas industry.
To be suitable for use within one of the most demanding areas,
made of stainless steel, Delikon Small Bore Heavy Series Over
Braided Flexible Stainless Steel Conduit and Heavy Series
Stainless Steel Connector are able to withstand high
temperatures, Resistant to dust and Corrosion resistant. |
|
* Maximum size we
could produce= 6"(about 150mm). For bigger
sizes or custom sizes order, please send us
your detailed requirement. |
 |
 Download
the catalog page for DELIKON
AT-BRAIDED Series
High Temperature EMI RFI Shielding
Small Bore Over Braided Stainless Steel Flexible Conduit in PDF File format. |
 |
Delikon EMI Shielding Heavy
Series Flexible Sheath Over Braided Flexible Metal
Conduit with external stainless steel braiding and
Shield Termination Heavy Series Connector for steel
mill Automation revamping cable protection
 Delikon
provides EMI Shielding Flexible Wiring Protection
Solutions for Steel Industry. Reliability is an
objective for Delikon flexible conduit system.
Therefore, we are able to provide you with robust
Heavy Series Flex Sheath Over Braided Flexible Metal
Conduit and Heavy Series Connector to meet the main
cable protection needs of the production process.
Whether in the coke oven battery, blast furnace,
drives, continuous pouring or metal processing
rolling mills, Delikon Heavy Series Flex Sheath Over
Braided Flexible Metal Conduit and Heavy Series
Connector are designed to withstand such aggressive
environments with excellence.
The metal industry is one of the most versatile
industries and therefore predestined for
Delikon heavy series over
braided flexible conduit
and heavy series
connector automation
cable protection solutions. It requires mechanical
protection and top EMI noise reduction performance
in difficult, sometimes extreme working conditions.
With Flexible solutions from Delikon, you master
these cable management requirements with sustainable
success and measurable efficiency.
Whether general industry, automotive supplier or
foundry and forging industry: their many facets make
the metal industry one of the most demanding
industries on the market. Thanks to our many years
of experience we are able to serve the entire
spectrum and offer customized cable protection
flexible conduit solutions for more efficient
processes in metal processing in every area.
Delikon EMI Shielding Heavy Series Over Braided
Flexible Conduit and Heavy Series Connector protect
Mill motors for slabbing, and blooming mill, Cold
Rolling mill VFD motor cable, and the shielding
provides excellent protection against signal
interference caused by voltage fluctuations and
current spikes.
Designed specifically for the harsh environments
found in steel and aluminium rolling mills, Delikon
Heavy Series Over Braided Flexible Conduit and Heavy
Series Fittings protect Hot metal IR detector,
Optical Speed meter and Non-contact speed
measurement instruments cables. The Heavy Series
Over Braided Flexible Conduit and Heavy Series
Connectors provide EMI shielding as well as
mechanical armouring for steel mill cables. |
 |
Delikon EMI RFI
Shielding Heavy Series Over Braided Flexible Conduit and EMI RFI
Shielding Termination Heavy Series Connector for steel mill modern
automation, drives and control systems cable protection
Delikon
Heavy Series Over Braided Flexible Conduit system consists of
Heavy Series Over Braided Liquid Tight Conduit,
Over Braided Flexible Polyamide
Corrugated Conduit,
Waterproof Heavy Series Over Braided Flexible
Metal Conduit,
High Temperature Heavy Series Over Braided
Flexible Metal Conduit,
coupled
with
EMI RFI Shielding Termination Heavy Series
Connector, and
High
Temperature Heavy Series Connector.
Delikon EMI RFI Shielding Heavy
Series Over Braided Flexible Conduit and EMI RFI Shielding Termination
Heavy Series Connector provide wires and cables shielding and protection
solutions to Metal Processing industry, maximizing plant efficiency and
performance.
Delikon EMI RFI Shielding
Heavy Series Over Braided Flexible Conduit and EMI
RFI Shielding Termination Heavy Series Connector
protect motor control cables, VFD cable and
automation cable |
 |
Delikon
Shielding Termination
Heavy Series Connector and Over Braided
Flexible Conduit are designed to combat the
effects of RFI EMI in cables
Industrial applications such as the factory
floor are typically electrically noisy
environments. Electrical noise, either
radiated or conducted as electromagnetic
interference EMI, can seriously disrupt the
proper operation of other equipment. Cables
can be a main source of transfer for EMI,
both as a source and receiver. As a source,
the cable can either conduct noise to other
equipment or act as an antenna radiating
noise. As a receiver, the cable can pick up
EMI radiated from other sources.
Switching heavy loads, inductive heaters,
large transformers can all present high
levels of both conducted and radiated EMI.
Placing signal cables next to power cables
can also allow power line noise to couple
onto the signal lines.
Delikon Over Braided Flexible Conduit and
Heavy Series Connector are designed to
combat the effects of RFI EMI in cables. The
over braiding of the conduit provides a low
resistance path to ground and conducts to
ground any of the noise it has picked up.

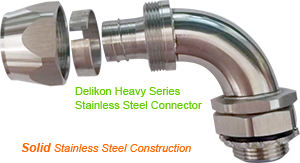

Delikon Heavy Series Connector provides a
shielding termination
that provides a low impedance path to
ground, ensuring high shielding
effectiveness of the system. Delikon Heavy
Series Connector makes sure the shields are
bonded and grounded to equipment enclosure
or electric cabinet. A 360-degree metal
split clamp slip around the outer stainless
braiding and the clamp is directly in
contact with the shield when the connector
back shell with a
cone shape interior
is tightened.
The heavy series connector clamps tightly
around the braiding and grounds the
shielding, which helps to protect the cables
against EMI noise.
Delikon Over Braided Flexible Conduit and
Heavy Series Connector also protects a cable
mechanically from scraps and abrasion and
environmentally from dust, moisture and
spills. |
 |
|
 |
Delikon
Electromagnetic Shielding Heavy Series Over Braided Flexible Conduit and
Heavy Series Connector protect and shield oil and gas industry
automation wire and cable
 Oil
and gas is a dynamic global industry that faces challenges in cost
management, extraction of high value from current assets, and
maximization of the up time. Automation in the Oil and gas industry can
improve efficiency and bring down costs. Delikon Electromagnetic
Shielding Heavy Series Over Braided Flexible Conduit and Heavy Series
Connector are helping the oil and gas industry to move closer to
operational excellence. Hence, Delikon has been deploying various
automation cable protection and shielding solutions to ensure that
optimization of operations.
Delikon Electromagnetic Shielding Heavy Series Over Braided Flexible
Conduit and Heavy Series Connector protect wire and cable of Sensors
Transmitters, Distributed Control Systems DCS, Programmable Logic
Controllers PLC, Supervisory Control and Data Acquisition System
SCADA, Safety
Instrumented Systems SIS,
Variable Frequency Drive
VFD and communication cables in manufacturing facilities. Use Delikon
Electromagnetic Shielding Heavy Series Over Braided Flexible Conduit and
Heavy Series Connector to protect wire and cable from signal distortion
caused by nearby equipment and devices. The Heavy Series Connector has a
split clamping ring which clamps tightly around the stainless steel
braiding when tightened. This continous grounding path formed by the
flexible conduit and the connector dissipates any stored charge. Delikon
heavy series over braided flexible conduit system provides good
protection against abrasion and mechanical stress, as well as
hot metal spark and splash.
Delikon
interference shielding Heavy Series Over Braided Flexible Conduit
and Heavy Series Connector protect Petroleum Oil and Gas Industry
Automation wiring, improving reliability and stability
With
increasing demand from the industry, Delikon produces a wide range
of
interference shielding
Heavy Series Over Braided Flexible Conduit and Heavy Series
Connector for automation and seamless data communication cable
protection. Delikon interference shielding Heavy Series
Over Braided Flexible Conduit and Heavy Series Connector are to
combat the effects of signal interference, providing proper
shielding for SCADA and PLC cables
adversely affected by EMI RFI ESI
electromagnetic interference, radio frequency interference, and
electrostatic interference. |
 |
Delikon EMI RFI Shielding
Heavy Series Over Braided Flexible Conduit and EMI
RFI Shielding Termination Heavy Series Connector
protect automation and industrial control system
wire and cable
Automation industry growth drives the need for
adequate cables that can support the unique power
and data transfer demands of new and innovative
solutions. More efficient equipment ultimately
creates more expensive downtime when it breaks down.
Consequently, power distribution and data cables for
production lines, automated machinery, safety
systems, and communications require a higher level
of reliability and dependability.
Delikon
EMI RFI Shielding
Heavy Series Over Braided Flexible Conduit and EMI
RFI Shielding Termination Heavy Series Connector
provide a range of cable protection and emi
shielding solutions facilitating decreased
maintenance frequency and subsequent maintenance
downtime in the factory automation systems.
Delikon EMI RFI Shielding Heavy Series Over
Braided Flexible Conduit and EMI RFI Shielding
Termination Heavy Series Connector are designed to
meet reliability
and durability
challenges without sacrificing flexibility.
Electromagnetic interference EMI in motion
control system cabling can be a major source of
frustration for servo motor system designers and
users. Left unsuppressed, it interferes with system
control, creates data errors, and can even turn
devices on and off. Delikon EMI RFI Shielding Heavy
Series Over Braided Flexible Conduit and EMI RFI
Shielding Termination Heavy Series Connector protect
signals in the cable conductors from external
sources of EMI, and also reduce the level of
interference radiated by the cable, which could
affect other conductors, equipment, and wiring
surrounding the cable. |
 |
 Delikon
Heavy Series Over Braided Flexible Conduit and EMI RFI
Shield Termination Heavy Series Connector protect mining
industry electrical and automation cables
From underground coal mines to surface gold mines to the oil
sands, Delikon heavy series over braided flexible conduit
systems are designed to protect
mining equipment,
mining machines
and rock excavation equipment
wire and cable and increase your productivity. Delikon
offers the broadest line of Heavy Series Over Braided
Flexible Conduit and EMI RFI Shield Termination Heavy Series
Connector in the mining and infrastructure industries for
protection and EMI RFI shielding of underground and surface
mining equipment electrical and automation cables. Delikon
flexible cable protection solutions cover the whole
automation and IT landscape, from sensor level to complete
process automation, protecting and shielding PLC PAC cables,
and VFD cables. |
 |
 Delikon
Heavy Series High Temperature Liquid Tight Stainless Steel Connector
Delikon heat resistant High Temperature
Heavy Series Liquid Tight Stainless Steel Connector offers good
corrosion resistance
to many chemical corrodents, as well as industrial atmospheres.
Providing good strength
and good resistance
to corrosion and oxidation at elevated temperatures, Delikon Heavy
Series Stainless Steel Connector is widely used in petroleum
chemical industry, offshore oil, gas industry, offshore wind
industry,metallurgical machinery, aerospace industry, food
processing equipment, instruments, household appliances and hardware
manufacturing industries.
Delikon Heavy Series
Stainless Steel Connector of
Solid Stainless Steel Construction
provides high tensile strength and temperature resistance, and are
extremely resistant to corrosion. |
 |
|
