| Pliable Metal Conduit
PVC Covered (
DELS1
) Pliable Metal Conduit PVC Covered, Steel Overbraided ( DELS1-BR )  Most Suitable For Static or Limited Vibration Applications *Metallic Pliable Conduits are easily bent by hand, and retain their shape when finally positioned. *Trade size: 12mm - 75mm *PVC Covered *High Crush and impact strength *Braided version enhances EMC screening. |
 |
 |
|
(1) Uncovered version Metallic Pliable Conduit for General Wiring Applications. |
| Type | Trade Size | I.D. (mm) | O.D.
(mm) Over Cover |
Minimum Bend Radius (mm) |
| TYPE: DELS0
Construction: |
12 | 7.8 | 12.7 | 25.0 |
| 16 | 11.6 | 15.9 | 30.0 | |
| 20 | 14.6 | 19.1 | 35.0 | |
| 25 | 20.4 | 24.4 | 45.0 | |
| 32 | 26.7 | 31.8 | 55.0 | |
| 40 | 32.8 | 38.1 | 70.0 | |
| 50 | 45.3 | 50.8 | 110.0 | |
| 63 | 56.3 | 63.5 | 145.0 | |
| 75 | 69.2 | 76.8 | 185.0 |
|
(2) PVC Covered version Metallic Pliable Conduit enhances Liquid Tight. |
| Type | Trade Size | I.D. (mm) | O.D.
(mm) Over Cover |
Minimum Bend Radius (mm) |
| TYPE: DELS1
Construction: |
12 | 8.3 | 14.6 | 25.0 |
| 16 | 11.6 | 17.8 | 30.0 | |
| 20 | 14.6 | 21.0 | 35.0 | |
| 25 | 20.4 | 27.3 | 45.0 | |
| 32 | 26.7 | 34.0 | 55.0 | |
| 40 | 32.8 | 40.4 | 70.0 | |
| 50 | 45.3 | 53.1 | 110.0 | |
| 63 | 56.3 | 65.9 | 145.0 | |
| 75 | 69.2 | 79.0 | 185.0 |
|
(3) Braided version Metallic Pliable Conduit enhances EMC screening. |
| Type | Trade Size | I.D. (mm) | O.D.
(mm) Over Braid |
Minimum Bend Radius (mm) |
| TYPE: DELS1-BR
Construction:
a flame retardant PVC covering over steel and Kraft paper, overbraided
with S.S. wires. |
12 | 8.3 | 15.6 | 25.0 |
| 16 | 11.6 | 18.8 | 30.0 | |
| 20 | 14.6 | 22.0 | 35.0 | |
| 25 | 20.4 | 28.3 | 45.0 | |
| 32 | 26.7 | 35.0 | 55.0 | |
| 40 | 32.8 | 41.4 | 70.0 | |
| 50 | 45.3 | 54.1 | 110.0 | |
| 63 | 56.3 | 66.9 | 145.0 | |
| 75 | 69.2 | 80.0 | 185.0 |
| CAUTIONS!!! DELIKON PLIABLE METAL CONDUIT IS INTENDED TO PROTECT CABLES THAT WILL REMAIN STATIC OR WITH LIMITED VIBRATION OR LIMITED MOVEMENT UNDER NORMAL INSTALLATION CONDITIONS. DELIKON METALLIC PLIABLE CONDUIT MUST NOT BE USED TO PROTECT CABLES THAT WILL CONTINUALLY FLEX IN SERVICE. | |
|
For applications where there is continually flexing or where there is a lot of vibration or movement, please use FLEXIBLE CONDUITS. Nowadays Delikon Liquid Tight Conduit is replacing pliable type in most applications: Interlocked liquid tight conduit is suitable for industry and telecom applications, where more frequent bending and moving or tighter bend is required. |
  |
 Heavy
Series Over Braided Flexible Conduit for industry wiring |
|

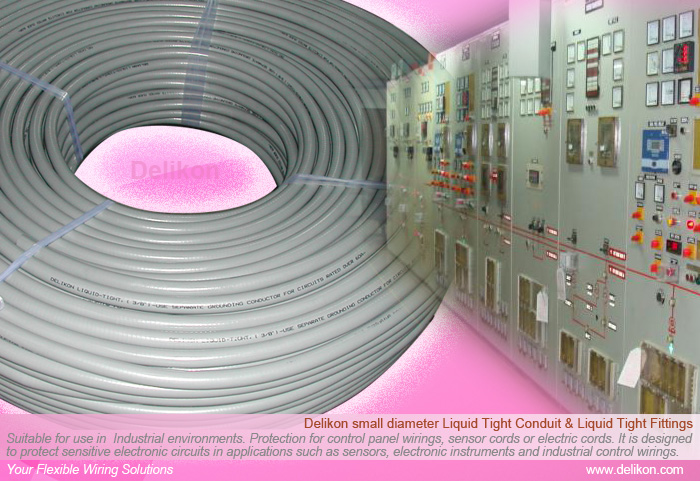

| Delikon small diameter Liquid Tight Conduit and Liquid Tight Fittings. Suitable for use in Industrial environments. Protection for control panel wirings, sensor cords or electric cords. It is designed to protect sensitive electronic circuits in applications such as sensors, electronic instruments and industrial control wirings. |
 |
