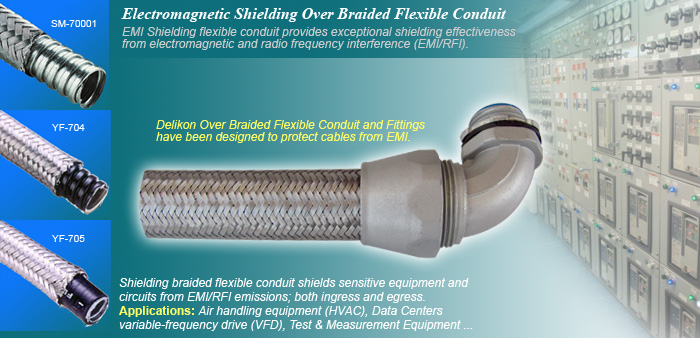

Electromagnetic Shielding Over Braided Flexible Conduit


EMI Shielding over braided flexible conduit provides exceptional shielding effectiveness from electromagnetic and radio frequency interference (EMI/RFI). Use it to protect sensitive electronic circuits from outside noise in such applications as communications, radar and data transmission. Shielded flexible conduit does not just keep interference out; it also keeps emissions in, which is vital to meeting EU standards. Shielding flexible conduit shields sensitive equipment and circuits from EMI/RFI emissions; both ingress and egress. Connector assemblies include a grounding ferrule that contacts the conduit internal metallic material with the connector body, producing a direct shield-to-drain (ground) simply by tightening the connector. Its flexibility and simple assembly means it takes less time to install. Over Braided Flexible Conduit is most suitable for installations in demanding industry environments, thereby giving increased protection to your critical power and data cabling Applications :
Air handling equipment (HVAC) Test & Measurement Equipment Data Centers Radio Broadband/Antenna Solar / Wind Energy	Variable-frequency drive (VFD) Ship Building Medical Diagnostic Equipment Wireless Communications Healthcare / Medical

Overbraided systems--- Electric Flexible Conduit systems for EMI & RFI shielding, abrasion and hot metal splashes resistance These braided conduits are used to protect sensitive electronic circuits such as communications, radar, and data transmission from outside interference or "noise". These conduits are also used when the reverse situation is also an issue. Comprises a standard conduit construction, with metallic overbraid. Typical electric wiring and cables protections applications where the following is a consideration:
Electromagnetic Interference (EMI) computers rooms telecommunications control systems braided flexible conduit Abrasion resistance braided flexible conduit* railway rolling stock heavy duty industrial cable management applications braided flexible conduit Mechanical integrity braided flexible conduit security/CCTV anti-vandal applications Hot metal splashes resistance steel & iron mills petrochemical plants

YF-705

*Galvanized steel strip core (with Nylon cord packing) *PVC Covering *Wire over-braid *Trade size: 3/8"~4" *Liquid-tight *EMI/RFI shielding

FLEXIBLE METAL CONDUIT, BRAIDED, LIQUID TIGHT

SM-701

*Galvanized steel strip core (Interlocked constructions) *PVC covering *Metal wire over-braid *Trade size: 3/8"~4" *Liquid-tight *EMI/RFI shielding
*High tensile strength

FLEXIBLE METAL CONDUIT, BRAIDED, LIQUID TIGHT

YF-704

*Galvanized steel strip core *PVC covering *Wire over-braid *1/4"~4" trade size
*Water-tight *EMI/RFI shielding

FLEXIBLE METAL CONDUIT, BRAIDED, WATER PROOF

PBF

*Corrugated Nylon core *Wire over-braid *1/4"~2" trade size

*Liquid-tight *EMI/RFI shielding

FLEXIBLE CORRUGATED NYLON CONDUIT, BRAIDED, LIQUID TIGHT

WNS

*Wire over-braid *6-25 trade size

*Liquid-tight *Oil resistant
*EMI/RFI shielding

FLEXIBLE OIL RESISTANT CONDUIT, BRAIDED, LIQUID TIGHT

SM70001

*Galvanized steel strip core *Wire over-braid *3/8"~4" trade size *All metallic for high temperature applications *EMI/RFI shielding
*High Temp.

FLEXIBLE METAL CONDUIT, BRAIDED, ALL METAL CONSTRUCTION

AT-SL-BRAIDED

*Metal wire over braided small tubing
*3.5mm - 12.7mm ID.

*All metallic for high temperature applications *EMI/RFI shielding

High tensile strength metal wires are tightly braided onto the AT-SL small bore flexible square locked metal tubing for optimum protection from abrasions or hot metal splashes.

FLEXIBLE EMC SCREENING Offshore Applications For Mining & Metal Industry
Related Products: Cut to length flexible conduit with connectors

Flexible Water Proof Metal Conduits Assemblies
Liquid-tight Flexible Steel Conduit Systems

braided flexible conduit

EMI screening and antistatic braided flexible conduit Where applications are within arduous areas then Delikon braided flexible conduit systems offer a complete protection in addition to EMI screening and antistatic characteristics. They are suited to the most demanding environments and the metal outer braiding can be used to suit demanding conditions. Typical application within automation using Braided Flexible Conduit systems include, pick-n-place robotics, material handling systems, conveyor and loading systems, inspection, measurement and test in addition to automated cleanroom installations.
	YF-705 (IP67) YF-704 (IP54) SM70001(IP40)
Electrical Over Braided Flexible Steel Conduits for heavy industry wirings To provide superior protection and immunity from electromagnetic interference, as well as increased mechanical abrasion resistance, Delikon has introduced the above complete line of Overbraided Flexible Metal Conduits systems that could meet your heavy industry wiring requirements

Electromagnetic Shielding Over Braided Flexible Conduit	EMI/RFI SCREENING

Braided-shield flexible conduit provids excellent Radio Frequency,as well as mechanical protection to the wirings and cables. typically used for industry control systems, machineries and petrochemical industrial cable protection 1/4"~4" trade size EMI/RFI shielding Resists hot metal splashes Abrasion resistant braided flexible conduit

In environments such as airport or factory work shop, where higher than normal levels of electromagnetic radiation are present, power or data systems could be vulnerable to Electro Magnetic Interference (EMI). Delikon Over Braided Flexible Conduit has been designed to protect cables from EMI.
