Thermoplastic Rubber Covered Metal Liquid Tight Conduit   ( YF-906 )

Delikon Liquid Tight Conduit and Fittings proven long-term dependable performance
Electrical flexible conduit
For Wide Temperature Range Environments: -40C to +140C * (approximate)
 Thermo plastic rubber coated metal Liquid Tight Conduit is most suitable for protecting electrical cables in demanding applications, such as heavy outdoor equipment, hydraulic machines, railway signal systems, industry control equipment, industry automation systems, motor cables, and sub-zero areas
Delikon Electrical flexible conduit

Thermo Plastic Rubber Covered Steel Liquid Tight Conduit and Metal Liquid Tight Connector for Wide Temperature Range Environments Electrical Cable Protections

MADE FROM YF-703-IN FLEXIBLE METALLIC CONDUIT WITH HEAVY DUTY Thermoplastic Rubber COVERING:
 Electrical flexible conduit
*Durable and long life.
*High tensile strength.
*Inner core made from a spiral wound strip of corrosion resistant galvanized steel.
*Unique Delikon Interlocking Mechanism for increased  strength, and good moisture tightness.  A durable wipe clean Rubber covering surface is keyed into the metal corrugations.
*Liquid tight. Complete protection against most liquids and moisture vapor. Resistance to Wide Temperature Range exposure (Hi-Lo Temperature)

Liquid Tight Conduit with aluminum connector
           Liquid Tight Conduit
          with aluminum connector

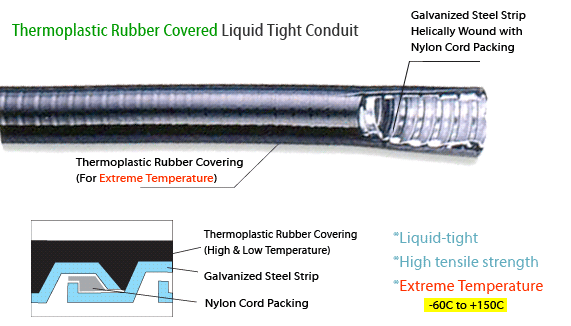

Thermoplastic Rubber Covered Liquidtight flexible metal conduit is manufactured from an electro-galvanised steel flexible inner core which is pressure coated with an oil resistant, high temperature grade of Thermoplastic Rubber. The Rubber is keyed into the corrugations of the inner steel flexible core, preventing the rubber covering from wrinkling when the conduit is bent to its minimum bend radius.
Delikon 4 inches aluminum liquid tight connector with NPT threads Delikon
4 inches aluminum liquid tight connector

Grey color liquid tight conduit for machine tools wirings:

 Liquid tight conduit assembly for electrical riser or CCTV installation

Applications:
Thermoplastic Rubber covered liquid tight conduit is used in situations where concerns of resistance to extreme temperature exposure exist. These include heavy outdoor equipment, railway signal systems and sub-zero areas. Metal Liquid Tight Conduit System
Delikon Liquid Tight Conduits now in extensive use on presses, welders, pumps, blowers, grinders, conveyors, machines and portable tools, automated lines, and in construction, power plants, industry, commerce and transportation.
Related Products:
      Over Braided Flexible conduit system for industry control and robot
DELIKON has introduced a range of over braided flexible nylon corrugated conduit & metal fittings with EMC screening capacity.
          Heavy series conduit fittings for over braided flexible conduit
 Heavy series conduit fittings for over braided flexible conduit.
Delikon HEAVY SERIES over Braided Flexible Metal Conduit and Heavy Series Fittings for iron mill cable retrofit
Delikon InterLocked Stainless Steel Liquid Tight Conduit,stainless steel liquidtight connector for MINING AND QUARRYING INDUSTRY wiring
Delikon InterLocked Stainless Steel Liquid Tight Conduit,stainless steel liquidtight connector for MINING AND QUARRYING INDUSTRY wiring

 Over Braided Flexible Steel Conduits for heavy industry
Braided Flexible Metal Conduit Systems For Industry Wirings
High temperature heavy series Over Braided Flexible metal Conduit for CNC and EDM machine wiring
Thermo Plastic Rubber Covered Steel Liquid Tight Conduit and Metal Liquid Tight Connector for Wide Temperature Range Environments Electrical Cable Protections
Thermoplastic Rubber Covered Steel Liquid Tight Conduit
Type YF-906 Thermoplastic Rubber Covered Metal Liquid Tight Conduit is well suited for exposure to Wide Temperature Range climatic conditions. It is also widely used on industrial process equipment such as Hydraulic machines, Lumber Kilns, Foundries, Refrigeration, etc. It is a conduit designed to withstand a wide temperature range. Used in situations where concerns of resistance to temperature exposure exist. These include heavy outdoor equipment, railway signal systems and sub-zero areas.

Thermoplastic Rubber Covered Galvanised Steel Liquid Tight Conduit
Type Trade Size I.D. (mm) O.D. (mm) Min. Bending Radius (mm) Meters/Coil
MIN. MAX. MIN. MAX.
YF-90602 1/4" 6.2 6.7 11.4 11.9 50 100
YF-90603 3/8" 12.5 13.0 17.8 18.3 60 50
YF-90604 1/2" 16.1 16.6 21.3 21.8 80 50
YF-90606 3/4" 20.7 21.3 25.9 26.4 100 30
YF-90610 1" 26.3 26.8 33.3 33.8 150 30
YF-90612 1-1/4" 35.0 35.5 42.6 43.1 180 20
YF-90614 1-1/2" 40.0 40.5 47.6 48.0 220 20
YF-90620 2" 51.0 51.5 60.3 60.8 250 15
YF-90624 2-1/2" 63.0 63.7  72.2 73.0 300 10
YF-90630 3" 78.0 78.8 88.2 89.0 450 10
YF-90640 4"  101.8 102.8 113.2 114.0 600 5
Download the catalog page for DELIKON YF-906 Thermoplastic Rubber Coated Liquid Tight ConduitDownload the catalog page for DELIKON YF-906 Thermoplastic Rubber Coated Liquid Tight Conduit in PDF File format.Complete Range of Delikon Quality Liquid Tight Conduits
Stainless Steel Liquid Tight connector for offshore wiringDelikon Stainless Steel Liquidtight Connectors offer corrosion resistance and the strength of stainless steel for the highest levels of endurance.
Delikon Stainless Steel Liquid Tight Conduit and Stainless Steel Liquid Tight Connector are widely chosen by water treatment plant, sewage treatment plant, petrochemical plant, Oil & Gas industry, mining industry, food & beverage and pharmaceutical industry, paper industry, offshore industry . . . or applications where better corrosion resistance is required.
See also: Stainless Liquid Tight Conduit and Stainless Steel Liquid Tight Connector for chemical instrument wiringSee also: Stainless Liquid Tight Conduit and Stainless Steel Liquid Tight Connector for chemical instrument wiring, offering the highest possible solution for liquidtight applications in environments like food processing, paper mills, oil refineries and more.
*We are also dedicated to "cut-to-length" order for flexible conduits. Consult Delikon for details
* Temperatures and other specifications are affected by different installation conditions and operating environments. The Performance and Suitability of the flexible conduit for one particular application must be determined by trial. The design and specifications are subject to change without prior notice for product improvement or regulatory requirements.
*All sizes and dimensions listed above are subject to manufacturing tolerances. flexible liquidtight conduit
*Standard Packaging: Shrink wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval.           Also Refer To: Braided Flexible Metal Conduit  Flexible S.S. Conduit
