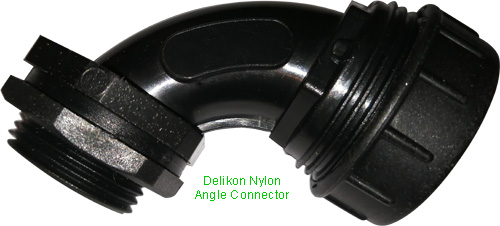

Corrugated Nylon Flexible Conduit Fittings ( Angle Nylon Connector )

Delikon Nylon Flexible Conduit Connector. Delikon Nylon Angle Connector.Molded Nylon Connector. It has high resistance to wear, heat, and chemicals.

Molded Nylon Connector. It has high resistance to wear, heat, and chemicals.
* Most suitable for flexible corrugated nylon conduit
Corrugated Nylon Flexible Conduit Fittings (Angle Nylon Connector)
* All nylon construction resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents.
* Suitable for indoor/outdoor use; for original equipment manufacturers or field installers.
* Smooth internal surfaces provides for easier wire routing, protection, and installation.

Nylon Liquid Tight Conduit Fittings ( Angle )

Liquid Tight
Electrical flexible conduit


Angle Nylon Connector (PF threads)

Model No.

Trade Size

Dimension (mm)

PF (G) Threads

I.D.

A

B

C

D

PFL-03B

3/8”

11.3

20.6

 28.0 13 46.2

PF 1/2”

PFL-04B

1/2”

 14.4 20.6 34.5 13 53.1

PF 1/2”

PFL-06B

 3/4” 18.3 26 42.0 15 66.8

PF 3/4”
PFL-10B 1” 24.4 32 48.5 18 69.5 PF 1”
PFL-12B 1-1/4” 32.7 42 58.0 18 85 PF 1-1/4”
PFL-20B 2” 48.8 60 70.5 21 97 PF 2”


Angle Nylon Connector (PG threads)

Model No.

Trade Size

Dimension (mm)

PG
Threads

I.D.

A

B

C

D

PGL-02-5B

 5/16” 9.0 15.2 25 10 37.5 PG 9
PGL-03-1B 3/8”

11.3

 18.6 28 10 40.6 PG 11
PGL-03-2B 3/8”

11.3

 20.4 28 10 41.3 PG 13.5
PGL-04B 1/2” 14.4 22.5 34.5 12 50.6 PG 16
PGL-06B 3/4” 18.3 28.3 42 12 65 PG 21
PGL-10B 1” 24.4 37.0 48.5 12 61.7 PG 29
PGL-12B 1-1/4” 32.7 47.0 58 12 79.5 PG 36
PGL-20B 2” 48.8 59.0 70.5 15 91.5 PG 48



Angle Nylon Connector (Metric threads)

Model No.

Trade Size

Dimension (mm)

Metric Threads

I.D.

A

B

C

D

PML-025M12

 5/16” 9.0 12 24.3 12 37.5 M12 X 1.5

PML-025M16

 5/16” 9.0 16 24.3 12 37.5 M16 X 1.5
PML-03M16 3/8”

11.3

 16 27 12 40.6 M16 X 1.5
PML-03M20 3/8”

11.3

 20 27 13 40.6 M20 X 1.5
PML-04M20 1/2” 14.4 20 34.5 13 50.6 M20 X 1.5
PML-04M25 1/2” 14.4 25 34.5 13 50.6 M25 X 1.5
PML-06M25 3/4” 18.3 25 42 13 65 M25 X 1.5
PML-06M32 3/4” 18.3 32 42 15 65 M32 X 1.5
PML-10M32 1” 24.4 32 48.5 15 61.7 M32 X 1.5
PML-10M40 1” 24.4 40 48.5 15 61.7 M40 X 1.5
PML-12M40 1-1/4” 32.7 40 58 15 79.5 M40 X 1.5
PML-12M50 1-1/4” 32.7 50 58 15 79.5 M50 X 1.5
PML-20M50 2” 48.8 50 70.5 15 91.5 M50 X 1.5
PML-20M63 2” 48.8 63 70.5 15 91.5 M63 X 1.5
This angle nylon connector is most suitable for use with Corrugated Nylon Conduit (model PB) for industry cable management.

 It provides a smooth, gradual radius bend. Wiring is easily pulled or pushed through fitting and there are no sharp edges to strip wire.
